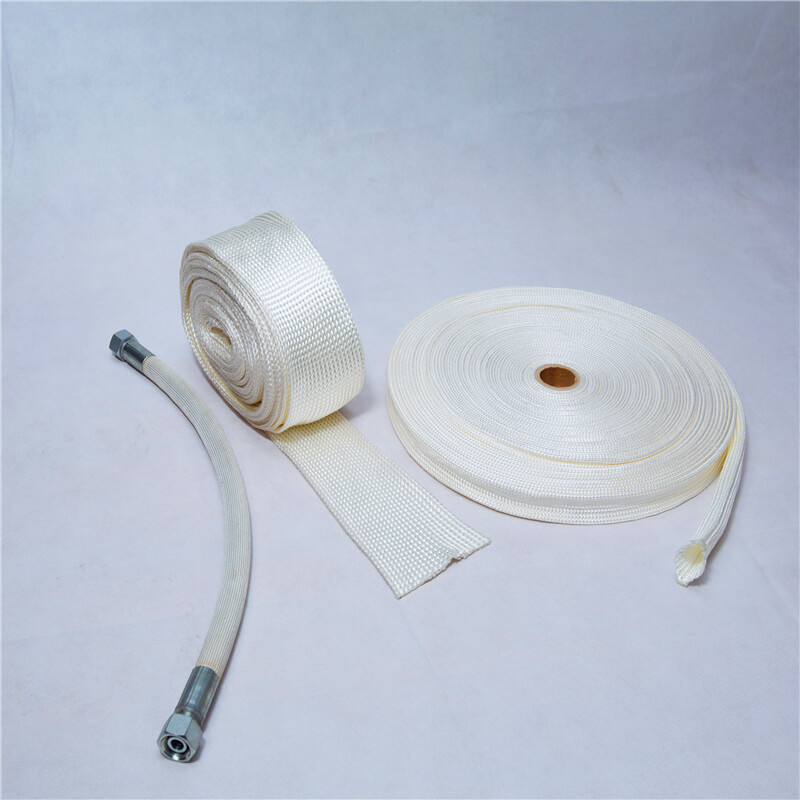

MQ Braided Silica Fiber Sleeve is made from silica fiber, SiO₂ content ≥96%, low shrinkage when being heated. Typically used to protect hose, tube, wire and cable in aerospace (gas turbine and rocket engines). Continuous use at 1832°F (1000℃), peak up to 3000°F (1650℃).
Item No :
MQHS-SOrder(MOQ) :
100mPayment :
TT, LC, PaypalProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, QingdaoLead Time :
Abundant stocks, can be dispatched out immediately.Description
MQ High Temperature Resistant Silica Fiber Sleeve is made from silica fiber, SiO₂ content ≥96%, it is able to withstand continuous use at 1832°F (1000°C) and short-term exposure up to 3000°F (1650°C). And it remains minimum lineal shrinkage under extreme heat conditions.
MQ High Temperature Resistant Silica Fiber Sleeve is an excellent alternative to asbestos and ceramic based textiles.
Application
MQ Braided Silica Fiber Sleeve is widely used to protect hose, tube, wire and cable in aerospace (gas turbine and rocket engines), metallurgical, nuclear power, electricity generation, petrochemical industries, high temperature sealing, also for turbine exhaust pipe cover, boilers thermal insulation cover, thermocouple wire thermal insulation cover.
Technical Data
| Size/Inner diameter | 3mm-120mm |
| Color | White |
| SiO₂ content | ≥96% |
| Working temperature | Continuous use at 1832°F (1000℃), peak up to 3000°F (1650℃). |
| Flammability | VW-1 |
| Properties | Flexible, resists extreme high temperature and flame, shields the splashing molten iron and electric spark, resistant to most chemicals and solvents. |
| Package | 1 roll/polybag/carton box, custom length is available. |
Specification
| Part No. | Inner Dia./mm | Wall Thickness (mm) | Weight (g/m) | Roll Length/m |
| MQHS-S-3 | 3.0±1.0 | 0.3±0.2 | 10±5 | 30 |
| MQHS-S-5 | 5.0±1.0 | 0.7±0.2 | 12±5 | 30 |
| MQHS-S-8 | 8.0±1.6 | 1.0±0.2 | 25±5 | 30 |
| MQHS-S-10 | 10.0±2.0 | 1.2±0.2 | 45±5 | 30 |
| MQHS-S-12.5 | 12.5±2.0 | 1.2±0.2 | 50±5 | 30 |
| MQHS-S-15 | 15.0±3.0 | 1.2±0.2 | 65±10 | 30 |
| MQHS-S-20 | 20.0±4.0 | 1.2±0.2 | 85±10 | 30 |
| MQHS-S-25 | 25.0±5.0 | 1.2±0.2 | 90±10 | 30 |
| MQHS-S-30 | 30.0±6.0 | 1.2±0.2 | 125±13 | 30 |
| MQHS-S-35 | 35.0±7.0 | 1.2±0.2 | 140±14 | 30 |
| MQHS-S-40 | 40.0±10.0 | 1.2±0.2 | 170±17 | 30 |
| MQHS-S-50 | 50.0±10.0 | 1.2±0.2 | 180±20 | 30 |
| MQHS-S-64 | 64.0±10.0 | 1.2±0.2 | 255±26 | 30 |
| MQHS-S-76 | 76.0±10.0 | 1.2±0.2 | 305±31 | 30 |
| MQHS-S-80 | 80.0±10.0 | 1.2±0.2 | 320±32 | 30 |
| MQHS-S-86 | 86.0±10.0 | 1.2±0.2 | 345±35 | 30 |
| MQHS-S-90 | 90.0±10.0 | 1.2±0.2 | 360±36 | 30 |
| MQHS-S-96 | 96.0±10.0 | 1.2±0.2 | 380±38 | 30 |
| MQHS-S-120 | 120.0±10.0 | 1.2±0.2 | 480±48 | 30 |
Our advantages
1. As a professional manufacturer over 14 years, we win our customers with good quality, best service and factory price.
2. Our products are 100% original and have strict QC inspection before shipment.
3. Professional and efficient sales team to serve for you diligently.
4. Sample order is welcomed and will be delivered within 1-3 days.
5. We provide OEM/ODM service according to your requirements.
