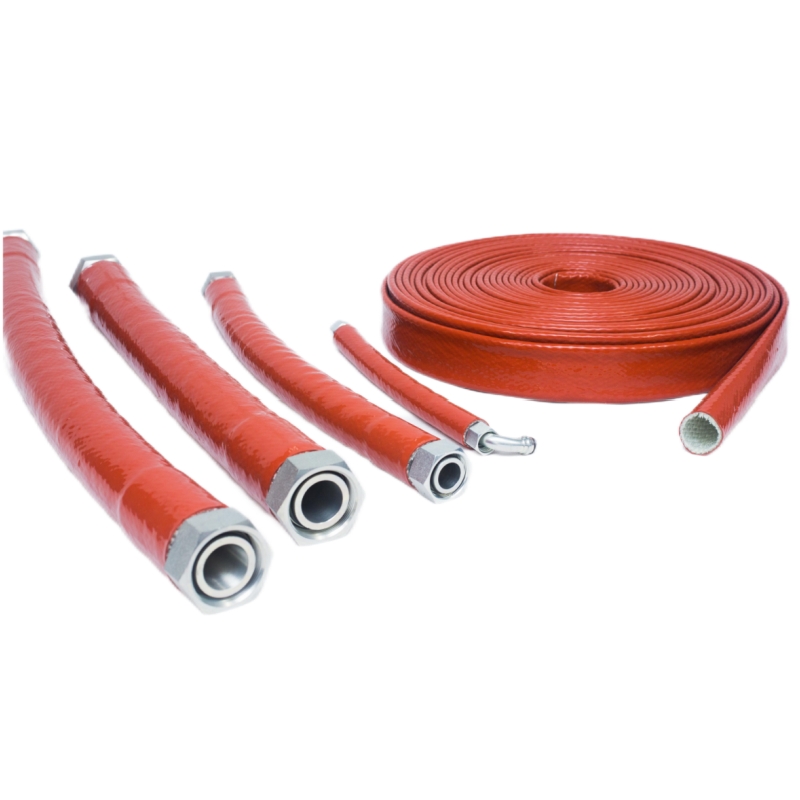

MQ Industrial Grade Fire Sleeve is typically used as a heavy-duty jacket to protect various of hoses, wires and cables from the hazards of high heat and occasional flame.
Item No :
MQFSOrder(MOQ) :
100mPayment :
TT, LC, PaypalProduct Origin :
ChinaColor :

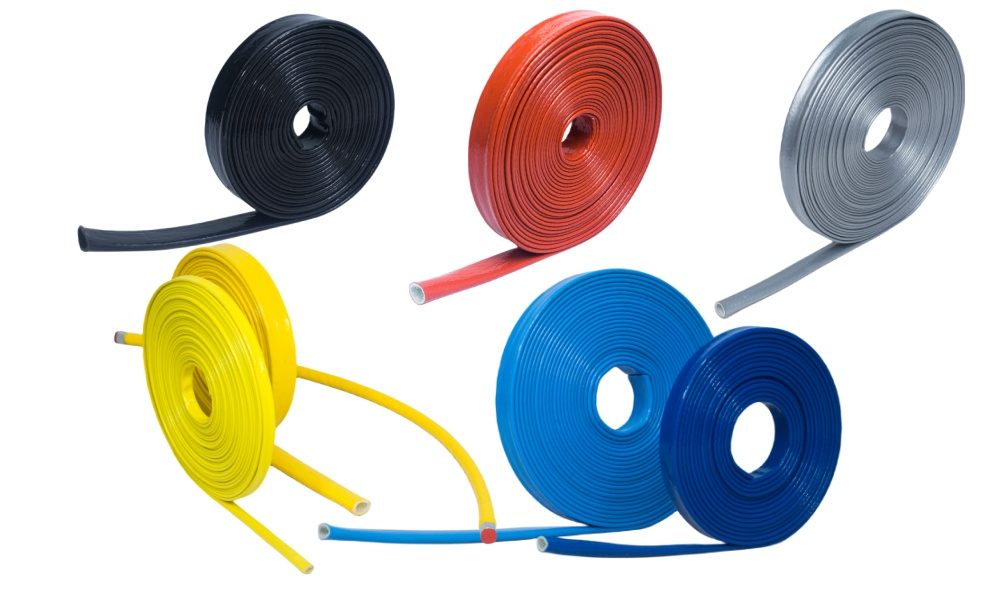

Red, blue, green, yellow, black, silver, or custom color.Shipping Port :
Shanghai, Ningbo, QingdaoLead Time :
Abundant stocks, can be dispatched out immediately.Description

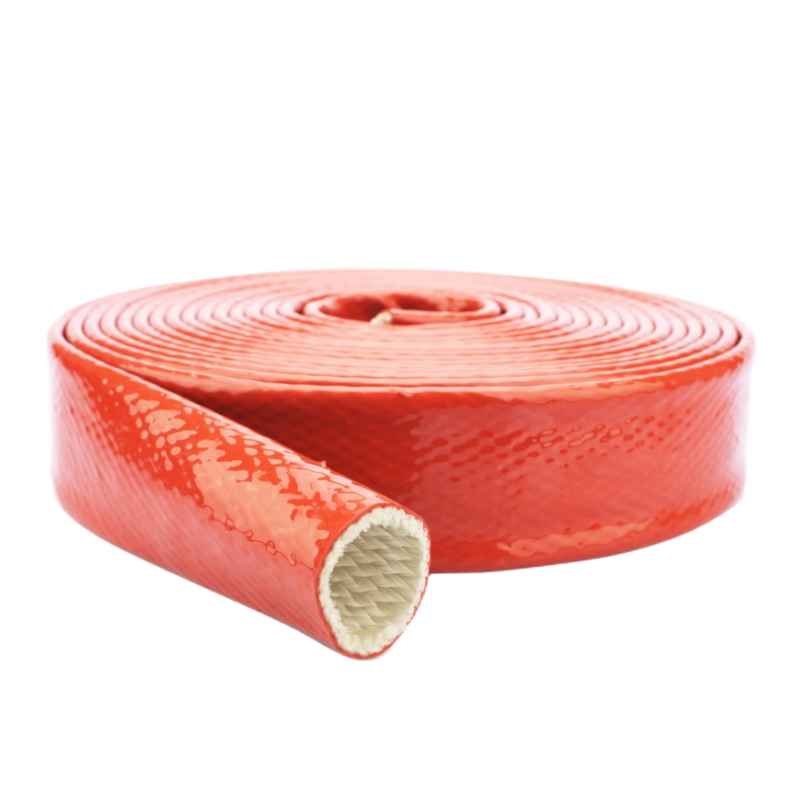

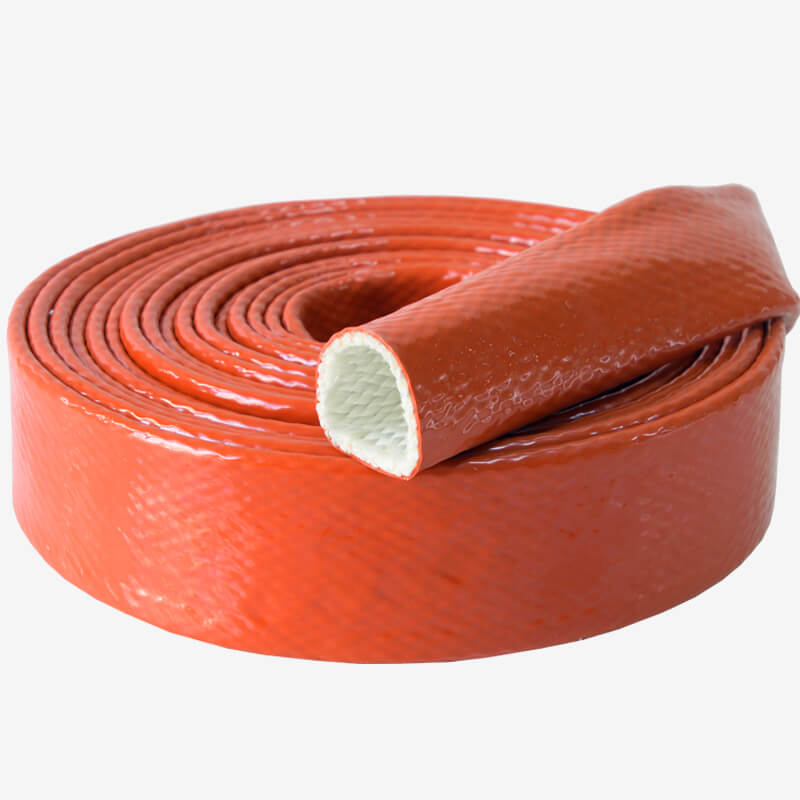

MQ Industrial Grade Fire Sleeve is constructed of E fiberglass yarns, and with high grade liquid silicone rubber coating.
Property
MQ Industrial Grade Fire Sleeve possesses outstanding fireproof, anti-fire, electrical insulation, heat resistant, mechanical property.
Also resistant to hydraulic fluids, lubricating oils, and fuels.
In addition, best resistance to most acids and alkalis.
Application

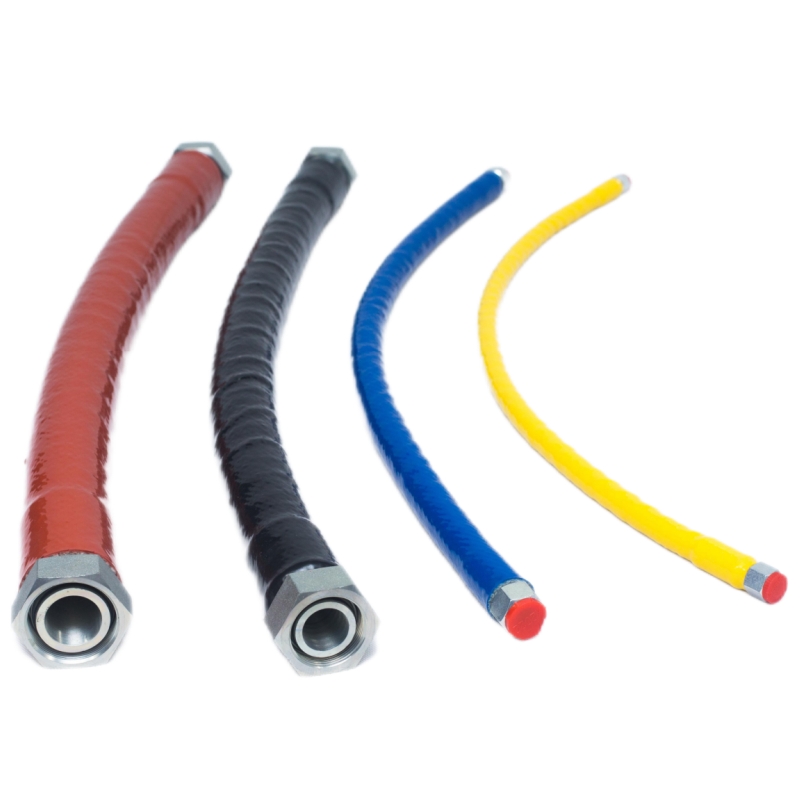

MQ Industrial Grade Fire Sleeve main use is as a kind of heavy-duty jacket to protect various of hoses, wires and cables from the hazards of high heat and occasional flame, such as shields molten metal splash in iron and steel plants, glass plants, aluminum plants, foundries, cutting and welding shops etc.
It also allows “bundling” of wires, hoses and cables in where they are existing any industrial areas.
Benefit
MQ Industrial Grade Fire Sleeve protects employees against burns from hot hoses and flexible steam lines effectively, on the other hand reduce heat energy losses greatly.
Technical Data
| Materials | E Fiberglass, High grade liquid silicone rubber |
| Operating Temperature | Continuous working under 500°F (260°C), Peak up to 3000°F (1650°C) |
| ID Size | 6mm-127mm, Other size customized |
| Flammability | VW-1 |
| Test Report | UL; RoHS; EN45545; REACH; MSDS; Tensile Test; Heat Shock; Low Temperature Properties; Dielectric Strength; Withstand Voltage |
| Application |
Hose, wire, cable heat & flame protection. Electrical insulation Bundling protection |
| Industry Scope |
Transportation (Auto, Locomotive, Marine, Heavy truck) Metallurgy, Iron & Steel, Mining Hose Fabrication Oil & Gas Energy |
|
Custom Options |
Colors (red, blue, green, yellow, black, silver, or custom) Custom printing (logo, brand, part number, etc.) |
Specification
| Part No. | Inner Dia. | Wall Thickness/mm | Roll Length/mtr | |
| mm | inch | |||
| MQFS06 | 6 | 1/4 | 1.5 | 20 |
| MQFS08 | 8 | 5/16 | 1.6 | 20 |
| MQFS10 | 10 | 3/8 | 1.8 | 20 |
| MQFS11 | 11 | 7/16 | 1.9 | 20 |
| MQFS13 | 13 | 1/2 | 2.0 | 20 |
| MQFS16 | 16 | 5/8 | 2.1 | 20 |
| MQFS19 | 19 | 3/4 | 2.4 | 20 |
| MQFS22 | 22 | 7/8 | 2.5 | 20 |
| MQFS25 | 25 | 1 | 2.6 | 20 |
| MQFS29 | 29 | 1 1/8 | 2.9 | 20 |
| MQFS32 | 32 | 1 1/4 | 3.0 | 20 |
| MQFS35 | 35 | 1 3/8 | 3.1 | 20 |
| MQFS38 | 38 | 1 1/2 | 3.2 | 20 |
| MQFS41 | 41 | 1 5/8 | 3.4 | 20 |
| MQFS44 | 44 | 1 3/4 | 3.5 | 20 |
| MQFS51 | 51 | 2 | 3.6 | 20 |
| MQFS57 | 57 | 2 1/4 | 3.7 | 20 |
| MQFS64 | 64 | 2 1/2 | 3.9 | 20 |
| MQSF70 | 70 | 2 3/4 | 4.0 | 20 |
| MQSF76 | 76 | 3 | 4.1 | 20 |
| MQFS83 | 83 | 3 1/4 | 4.3 | 20 |
| MQFS89 | 89 | 3 1/2 | 4.4 | 20 |
| MQFS95 | 95 | 3 3/4 | 4.5 | 20 |
| MQFS102 | 102 | 4 | 4.6 | 10 |
| MQFS114 | 114 | 4 1/2 | 4.7 | 10 |
| MQFS127 | 127 | 5 | 5.0 | 10 |
